Process Control Parts Kit
Available in stock (41)
Quantity limited to stock on hand.
Process Control Parts Kit Overview:
The Process Control Parts Kit contains the electronic components to complete the activities in the free PDF textbook Process Control. The activities include building circuits on a Board of Education USB Full Bundle, sold separately. The PBASIC programs for the BASIC Stamp 2 microcontroller, along with the text book, and required software, are available from the Downloads link below.
This textbook and kit are suitable for high school and college pre-engineering and engineering courses.

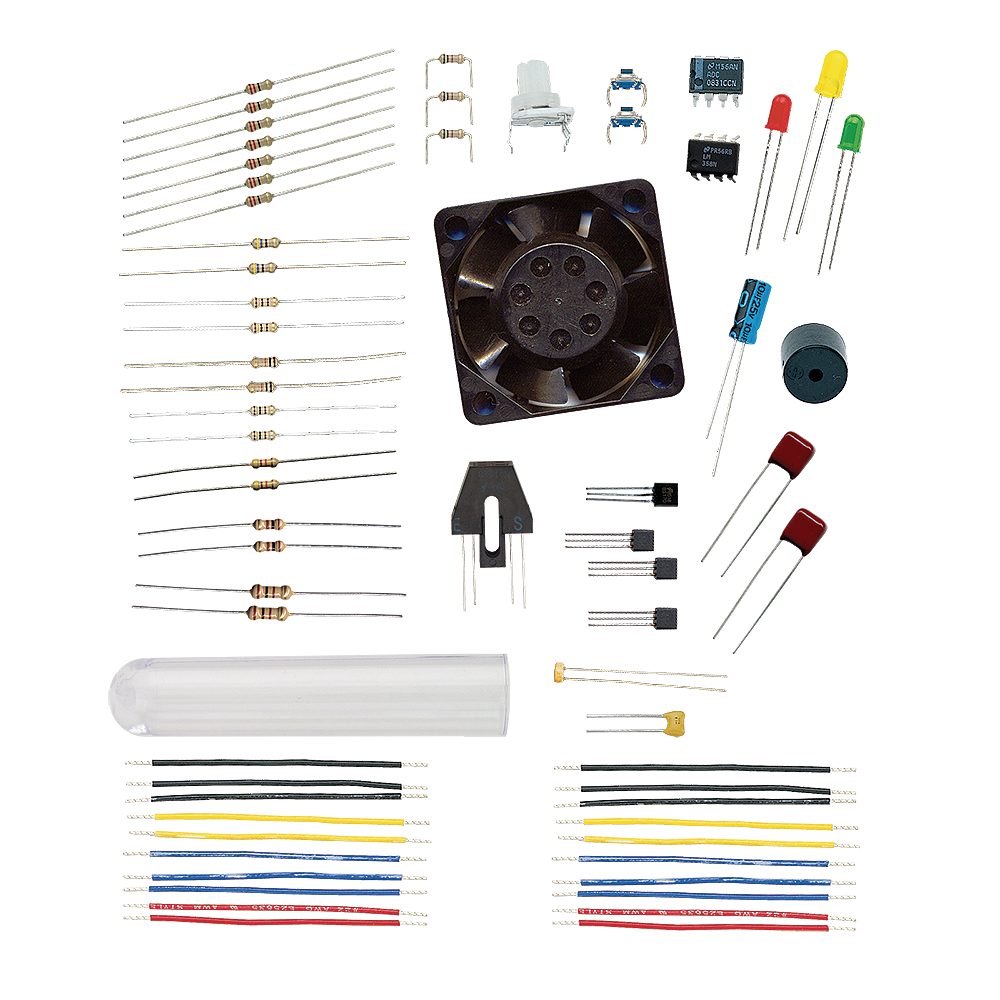

Process Control Parts Kit Contents:
- (2) Resistor, 100 ohm (150-01011)
- (2) Resistor, 100 ohm (150-01012)
- (3) Resistor, 1 k-ohm (150-01020)
- (3) Resistor, 10 k-ohm (150-01030)
- (2) Resistor, 100 k-ohm (150-01040)
- (2) Resistor, 1 M-ohm (150-01051)
- (7) Resistor,2 20 ohm (150-02210)
- (2) Resistor, 47 k-ohm (150-04702)
- (2) Resistor, 4.7 l-ohm (150-04720)
- (1) Potentiometer, 10 k-ohm (152-010310)
- (1) Transistor, N-Ch, 60V,TO-92 (153-00002)
- (1) Capacitor, 0.1uF (200-01040)
- (2) Capacitor-MF,0.68 uF,5%,50V,RADIAL (200-06840)
- (1) Capacitor-ELEC,10uF,20%,25V,RADIAL 201-01062)
- (1) LED, Green-T1 3/4 (350-00001)
- (1) LED, Red - T1 3/4 (350-00006)
- (1) LED, Yellow T1 3/4 (350-00007)
- (1) Photoresistor (350-00009)
- (1) OPB704WZ Reflective Sensor (350-00037)
- (2) Tact Switch (400-00002
- (2) Transistor, NPN (500-00001)
- (1) IC-Dip-8 Dual OP AMP (602-00015)
- (1) LM34 TO92 Temp Sensor (604-00011)
- (1) 12 VDC Brushless Fan (700-00040)
- (1) Test Tube 12 x 55mm 700-00079)
- (2) 3" Jumper Wires(1 Bag of 10) (800-00016)
- (1) PIEZO Sound Generator (900-00001)
- (1) 8-bit A/D convertor (DIP) (ADC0831)
Downloads and Documentation
Using the product's SKU above, you will find this product's documentation, manuals and example code on https://downloads.parallax.com
