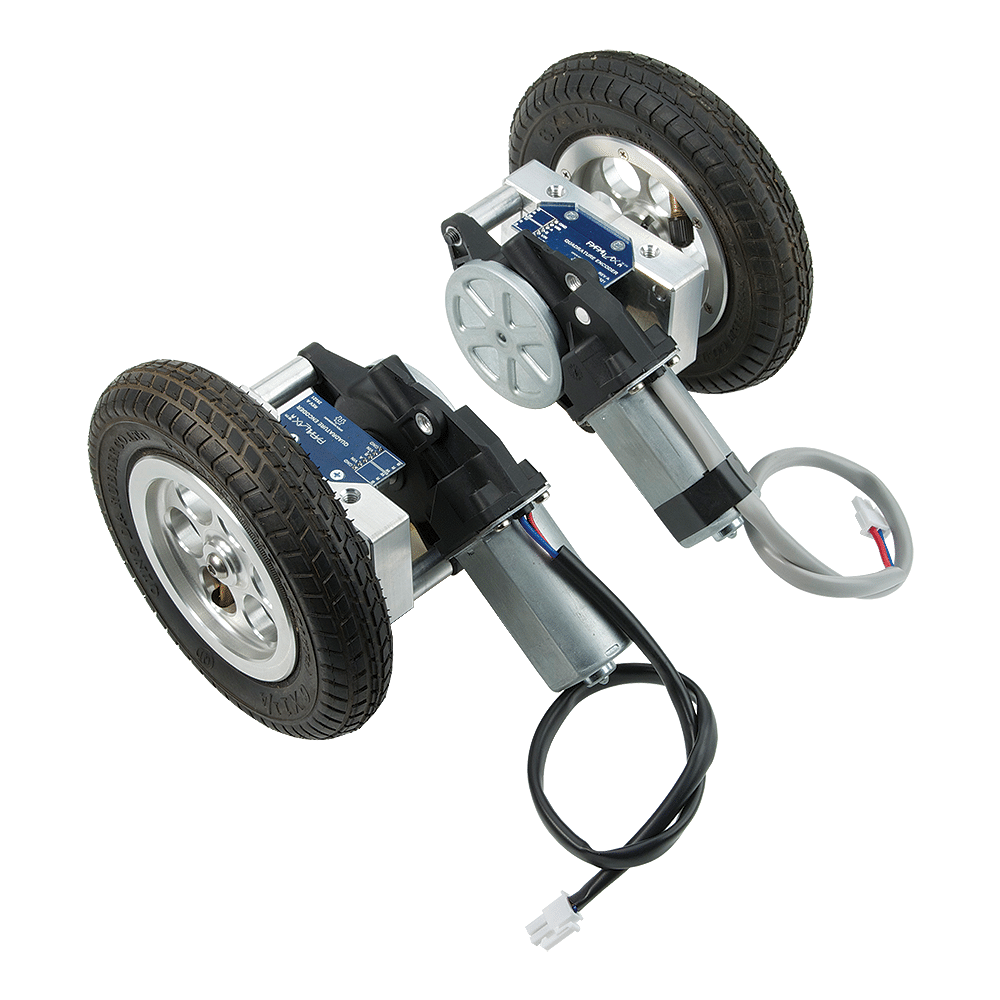

The aluminum Motor Mount and Wheel Kit is a precision-machined mechanical drive system designed for mobile robotic platforms. The brushed motors are worm-gear driven, and the main drive axle (0.5” dia.) is cradled in a ball bearing assembly for smooth-rolling performance. The included 36-position disk Quadrature Encoders resolve to 144 discrete ticks per tire revolution for precision navigation.

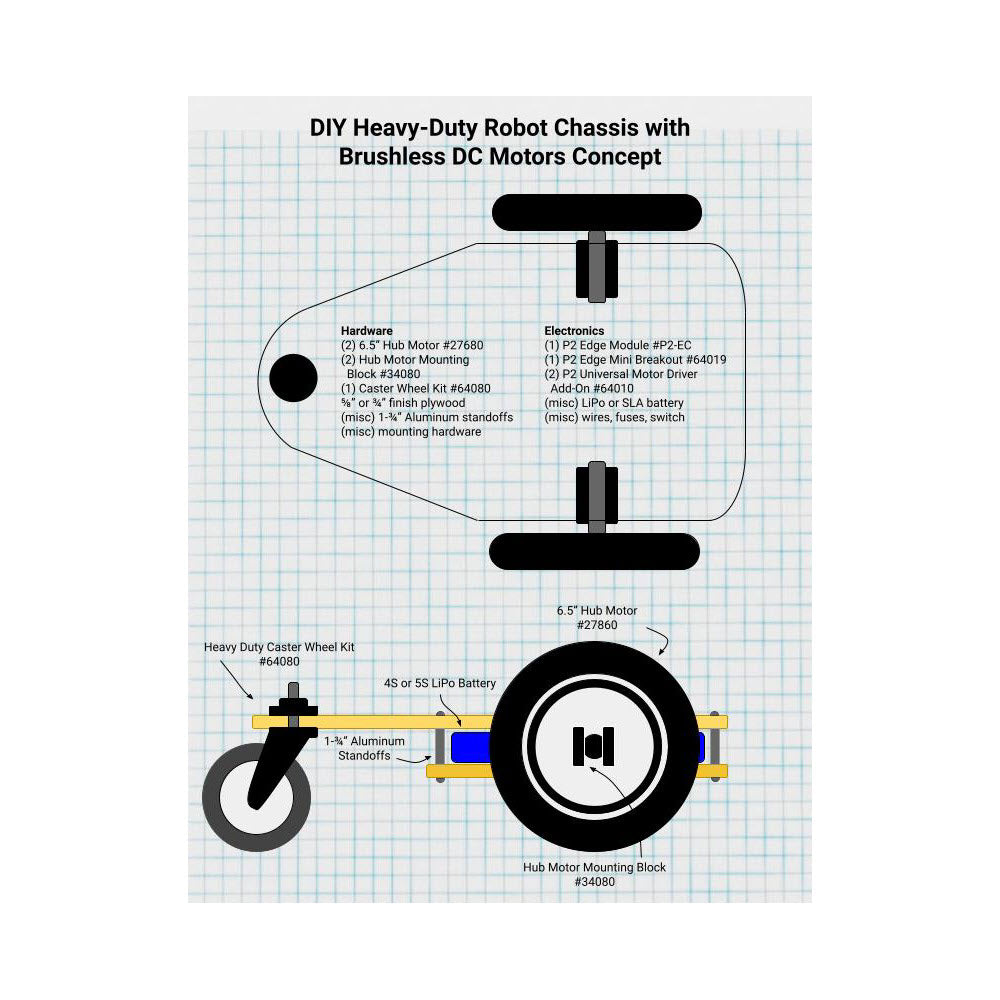

Ready to build your own custom mid-sized robot? This kit pairs well with the Heavy Duty Caster Wheel Kit (#64080)
Key Features:
- Machined 6061 aluminum components for smooth, worry-free performance
- 60 lb. payload capacity
- Compatible with most any microcontroller
- 144 encoder positions per revolution provide approximately 0.14” of linear travel accuracy
- Conveniently positioned pre-tapped screw holes for easy mounting
- 6” pneumatic tires are suitable for a variety of terrain - style and tread may vary
- Smooth-rolling quiet performance
- Aluminum parts precision-machined in California, USA
Application Ideas:
- Autonomous mobile robotic platform
- Tele-presence robot drive system
- Remote-controlled “sentry robot”
- DC Motor nominal operating voltage = 12.0 VDC
- Approx 95 RPM's @ 12.0 VDC
- Torque approx 85 in. lbs per motor assembly
- Weight = 2.8 lbs (1.27 kg) per assembly, 5.6 lbs (2.54 kg) per set
- Voltage requirements: 12 VDC nominal
- Current requirements: 2.5 - 8.0+ amps (depending on terrain and load)
- Communication: Dual - Quadrature Encoder outputs (four 5.0 volt tolerant inputs required)
- Operating temperature range: +32 to +120 °F (0 to +49 °C)

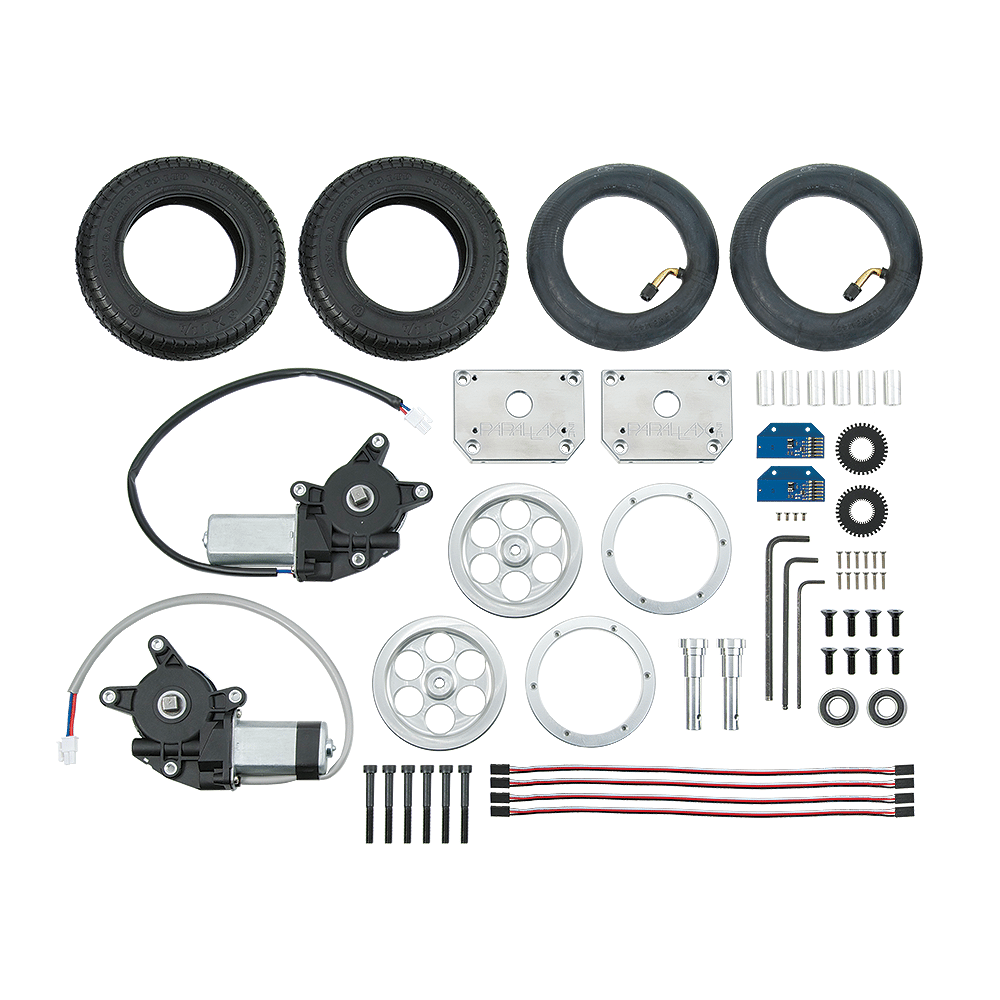

Motor Mount and Wheel Kit Contents:
- (1) - Motor, 12 VDC, 96 W, brushed (left)
- (1) - Motor, 12 VDC, 96 W, brushed (right)
- (1) - 36-position Quadrature Encoder Set (contains 2 encoder assemblies) (#29321)
- (2) - Motor Bearing Block 2 Aluminum
- (2) - Wheel, main rim - 6061 Aluminum
- (2) - Wheel, rim ring - 6061 Aluminum
- (2) - Robot Drive Axle 2
- (2) - 1/8 x 1" Roll Pin
- (12) - Screw, #4-40x1/2", FH, SS
- (6) - Screw, M6,1 mm x 50 mm SH, Black
- (2) - Screw, #1/4-20x5/8",BH,SS
- (6) - Spacer 0.50" x 1", RND, AL
- (2) - Tire, 6" x 1-1/4" Rubber w/tube - style and tread may vary
- (2) - 0.5" ID x 1.125" OD Ball Bearing
- (1) - Hex Key, 5 mm
- (1) - Hex Key, 5/32"
Note: Parts, part styles, motor wire terminal configuration, and quantities are subject to change without notice. Simple through-hole soldering required to attach right-angle headers to encoder boards. This product replaces the previous Motor Mount and Wheel Kit (#27971), and the Molded Plastic version (#28963).
