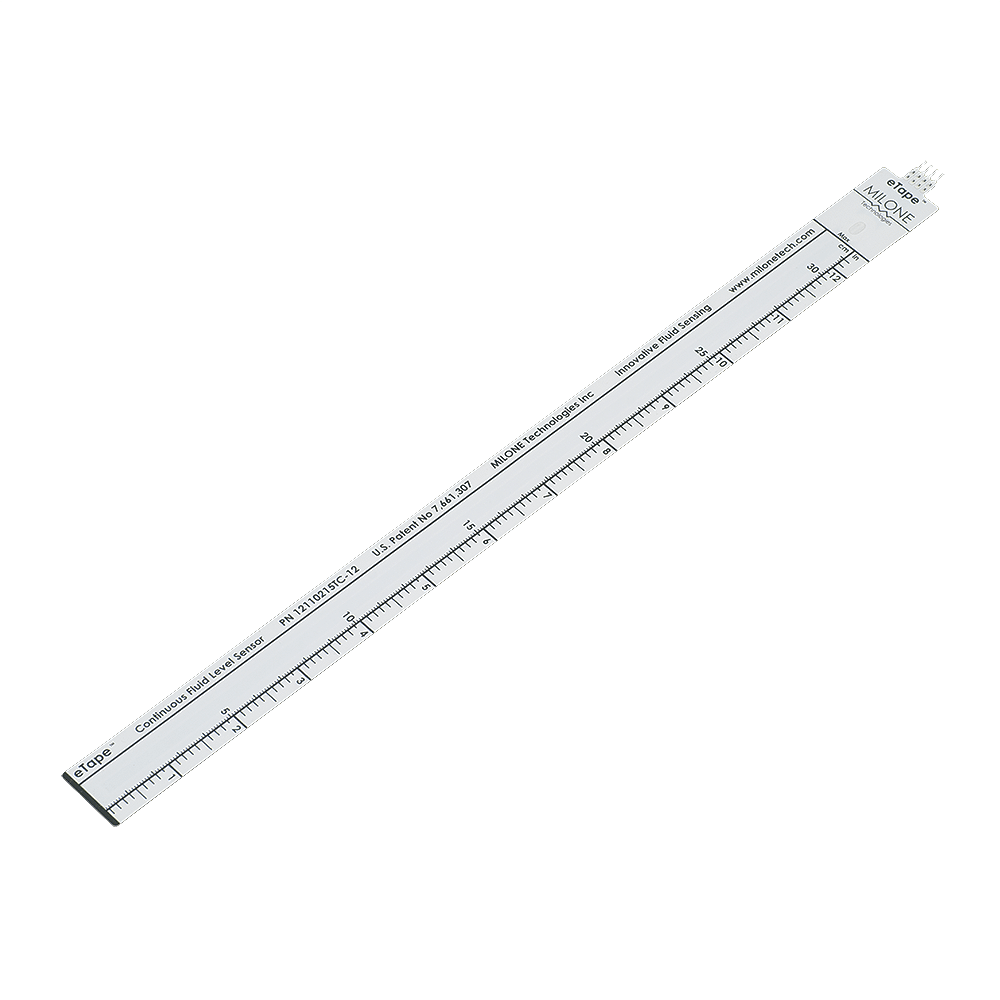

eTape Standard Liquid Level Sensor, 12-inch

  • 29131 eTape Liquid Level Sensor
$39.99
In Stock: 26
Product ID 29131
1+
$39.99

Overview

Solid-state eTape sensors make it easier to monitor the height of fluids — liquid or a fine powder — in a container. Placed vertically in a container, eTape senses the hydrostatic pressure applied by the fluid to the portion of the sensor that is submerged.

eTape sensors output a value in a continuous range corresponding to the fluid level along the entire length of the sensor, ideal where a single-point fluid level detection is not enough.  The slim, low-profile sensor has no moving parts and fits unobtrusively where there may not be enough room for mechanical float devices.

eTape Liquid Level Sensors produce a variable resistance output.  If your application is more suited to monitoring a voltage output, you may want to use the sensor with the optional eTape 0-5VDC Linear Resistance to Voltage Module.

Key Features:

  • Rated for use with non-corrosive, non-edible fluids
  • Crimpflex male pins easily connect to microcontroller projects
  • Reference resistor pins allow for optional temperature compensation
  • Protected vent hole to equilibrate with atmospheric pressure

Application Ideas:

  • Evaporation rate monitor
  • Aquatic projects
  • Industrial mixing control systems

Note:  The Standard eTape Liquid Level Sensors are designed for measuring non-corrosive, non-edible fluids. See the related Chemical eTape Liquid Level sensors for chemical, petroleum, and food-safe applications.

Details

  • Active sensor length: 12.4 in (315 mm)
  • Actuation depth: 1 in (25.4 mm)
  • Output: variable resistance, 400-2000 ohms +/-20-%
  • Resistance gradient: 150 ohms/inch (60 ohms/cm)
  • Reference Resistance: 2000 ohms +/-20-%
  • Resolution : < 0.01 in (0.25 mm)
  • Power rating: 0.5 watts (VMax = 10 V)
  • Operating temperature range: 15 to 150 °F (-9  to +65 °C)
  • Overall dimensions: 14.2 x 1.0 x 0.015 in (361 x 25.4 x 0.38 mm)

Downloads & Documentation

Download Details More Info
eTape Standard Liquid Level Sensor Datasheet - 249.63 KB | updated: 01 Oct 2014 - 12:47 pm
eTape Application Note - 512.23 KB | updated: 20 Sep 2012 - 3:54 pm
eTape Liquid Level Sensor BASIC Stamp 2 Code - 468.68 KB | updated: 17 Oct 2014 - 7:09 pm
eTape Chemical Liquid Level Sensor Datasheet - 250.17 KB | updated: 17 Oct 2014 - 7:36 pm
eTape Liquid Level Sensor Arduino Code - 2.05 KB | updated: 22 Oct 2014 - 12:44 pm
eTape Liquid Level Sensor Propeller Spin Code - 54.02 KB | updated: 17 Oct 2014 - 7:29 pm
eTape Liquid Level Sensor Propeller C Code - 2.78 KB | updated: 17 Oct 2014 - 7:31 pm
